Expansion Joints: Different Types, Features, and Tips to Select

The primary purpose of an expansion joint is to absorb movement and vibration in a rigid piping system. These joints are designed in a way that they can expand, contract and adjust without damaging the piping or ducting on either side. They were specially engineered to bear movement occurring due to thermal expansion, vibrations of pumps, and misalignments due to installation tolerances. It is also resistant to the process conditions and external influences of the application.

Expansion joints are used for accommodating thermal expansion, mechanical vibration, and other movement. They aid in maintaining the integrity and performance of the mechanical system. These joints are usually made from materials such as rubber, metal, and fabric.

Different Types of Expansion Joints

Expansion joint suppliers typically deal in a range of expansion joints. Each expansion joint is designed to serve a particular purpose.

Thermal expansion joints:

These expansion joints are made for application where variation in temperature takes places. These joints are capable to bear contraction of materials due to changes in the. They are also known as expansion bellows. They help to prevent structural damage and maintain the safety of pipes and other systems exposed to temperature variations.

Metal Expansion Joints:

These joints are made from handle and are capable to bear high pressures and temperatures. They are also regarded as compensators.

Rubber Expansion Joints:

These joints are made from elastomers that are capable of absorbing vibration. Rubber expansion joints are used in plumbing and drainage systems.

Fabric Expansion Joints

These expansion joints are made up of layers of fabric coated or laminated with rubber or other materials. These joints are used insulate, to prevent mechanical loads and to safeguard against abrasion.

Concrete Expansion Joints:

These expansion joints are installed in the concrete construction to prevent cracking and structural damage by enabling concrete to move as it expands and contracts.

Below Expansion Joints:

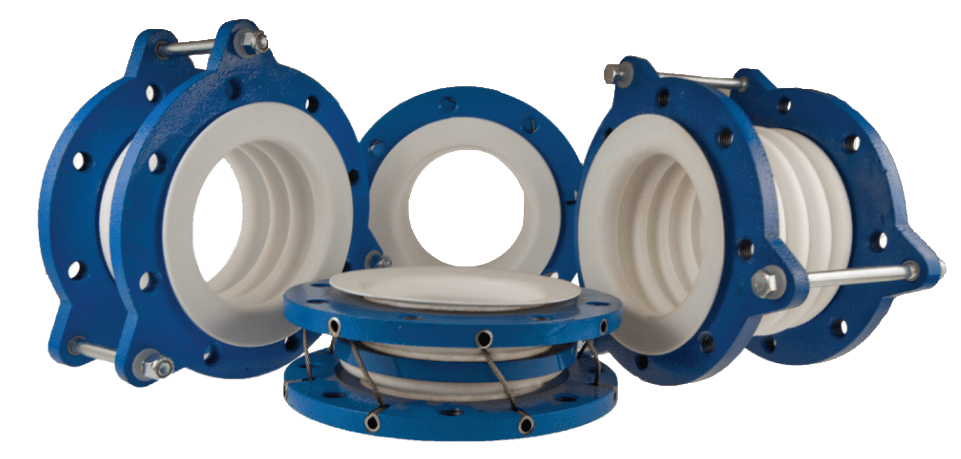

These joints are flexible bellow-like structures that absorb movement and vibration in the piping systems.

Seismic Expansion Joints:

These joints are also commonly regarded as expansion joints for buildings. These joints allow large multidirectional movements of structures to avoid collisions and ensure the durability of the structures.

Vertical and Horizontal Expansion Joints:

These joints are used in systems where movements can occur in different directions. Vertical joints are able to handle vertical movement, where horizontal joints

Extension joints play a prominent role in various industries and applications. Whether you are in the gas industry or the pharmaceutical industry, selecting high-quality expansion joints is essential.

• One must begin with understanding the requirement of an application. It means consider what kind of fluid or material will be passing through it. What will be the temperature variations, the level of pressure, and the expected range of movement?
• Expansion joints are designed using a range of materials. Each material has its own unique qualities that make it a suitable choice for particular applications. One needs to bear in mind the application and characteristics of the expansion joint to choose the right type of expansion joint.
• Many manufacturers also provide custom-designed expansion joints. The choice of design and configuration depends upon the type of flexibility and range of movement required. One must also consider the type of end connections for expansion joints, such as flanges or threaded ends, to match your requirements.
• It is important to choose expansion joints that comply with all industry standards and certifications. For this, it is advised to look for reputed expansion joint suppliers having a strong track record in producing quality expansion joints built to last for many years.
